SMP-400 PVC milling plastic pulverizer machine 100~300kg PVC powder
machinery
Application
PVC pulverizer machine is mainly used for reusing the waste PVC
pipes profile board, there will be many unqualified waste material
during normal production, to reuse these material, the first stage
is to crush into small particles, then further reduce the particles
into podwer by our PVC pulverizer machine. after pulverizing, the
final powder size is from 30-80mesh according to customer need.
The whole set of plastic pulverizer miller include feeding hopper,
grinding chamber, vetex hopper, vibrating sieve, regrinding system,
dust-cleaner. The blade for this plastic pulverizer could be rotor
type blade(for PE PP material) and disk type blade(). With cooling
system, our plastic pulverizer can be applied to PP, PE, EVA, ABS,
PVC materials.
Features
1). With water cycle and wind cooling, the machine can be applied
into processing heat sensitive material.
2). With the tail-wagging air stream (partly eddy flow) produced by
the tail-wagging of the main shaft capstan of the machine, the
input tail-wagging materials collide strongly with the board and
the cutting blade, and was grinded into powdery (without sieving).
3). Both the board and the cutting blade are made of
abrasion-resistant steel, with excellent performance after heat
treatment.
4). With severeness of framework, the volume of the machine is
quite small. If you open door closure, you can maintain it. It is
completely airproof and without any dust leakage.
5). With winding reclaiming equipment, the machine is features by
cooling materials evenly, quick cooling and some other
characteristics.
6). The new disc design is used, high-yield, strong resistance and
the life of this grinding disc is double than the ordinary.
7). The use of newly designed professional bearings, and reach a
high rotation rate. At the same time using only one drive motor, to
ensure the efficient grinding crash, which greatly saves the time
and operation of machinery and control engineering.
8). Installation and maintenance easy, open the door to cover
clean-up.
9). Milling process of the whole seal, without dust leakage.
10). Full automatic feeding, the materials and sorting.
11). Grinding gap adjustment is simple, just use the plug-foot
bolts and adjustments can be fine-tuning (10-120 mesh).
12). The host used the water and wind double system; Rational
design of smaller cross-section of the grinding chamber, grinding
is almost flat vertical surface. Material entered the grinding
chamber as soon as caught, groud, and then rapidly removed, which
eliminates the grinding chamber of the surge in materials, heating
materials to avoid decomposition, resulting in improved production.
Technical parameters
| Model | SMF-380 | SMF-610 | SMF-800 |
| Grinding disc diameter(mm) | 380 | 610 | 800 |
| Grinding disc quantity(pcs) | 2 | 2 | 2 |
| Speed of mainshaft(r/min) | 4500 | 4200 | 3700 |
| power | main motor power:30kw blower motor:3kw flow valve:0.75kw | main motor power:45kw blower motor:5.5kw flow valve:0.75kw | main motor power:55kw blower motor:7.5kw flow valve:1.1kw |
| vibration sieve motor | ZDS-800 | ZDS-1000 | ZDS-1200 |
| Powder fineness | 10-100 | 10-100 | 10-100 |
| coolig type | air cooling,water coolng | air cooling,water coolng | air cooling,water coolng |
| output(60 meshes) | PVC:200KG PE:150KG PP:150KG | PVC:350KG PE:300KG PP:300KG | PVC:500KG PE:500KG PP:500KG |
| Outsize(mm) | 2500*2000*3000 | 2800*2300*3000 | 3200*2800*3200 |

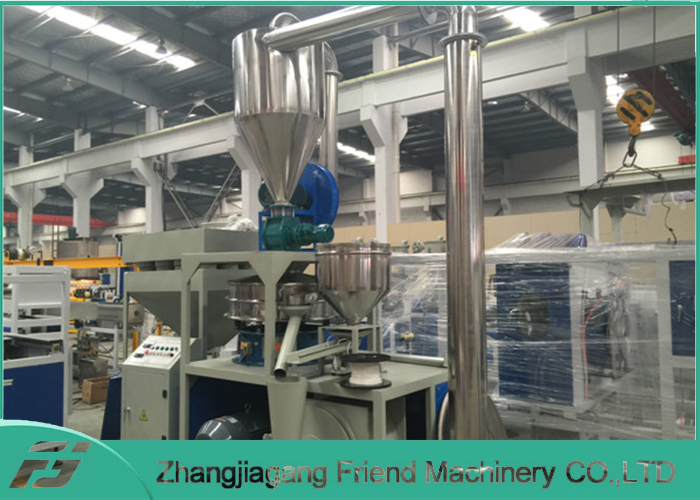

Machine pictures
