Description of PVC ceiling panel extrusion machine:
PVC ceiling panel extrusion machine is mainly used to produce PVC
ceiling, PVC wall panel with width of 200mm,250mm,300mm with
different section shape and height. The surface of PVC ceiling can
be treated by double color printing and coated with glossy oil, or
by heat transfer printing, or by lamination, which can make marble,
wooden design on the surface of products.
Main Advantages of this extrusion machine:
1. Speed controlled by inverter, saving power and easy to adjust
speed.
2. Extruder temperature controlled by Omron intelligent controller,
temperature fluctuation is self adjusting.
3. Low power consumption: power consumption of total production
line can low to only 25kw/hour.
Parameter:
1. Conical twin-screw extruder, suitable for processing PVC powder
and WPC raw materials.
2. Changing the moulds to produce many kinds of different PVC
profiles.
3. Auxiliary machine: Mixing unit, Mould, Vacuum calibration table,
Thermal transfer,Haul-off machine, Cutter and Stacker.
4.This production line is mainly used to produce PVC profile, such
as Ceiling, Deck, Floor, Cornice, Plank, Windows, Door frame and
board and etc.
| Model | 250 |
300 |
400 | 600 |
| Applicable product width | 160-300 | 160-300mm | 160-300mm | 400-600mm |
| Extruder | SJSZ51/105 | SJSZ55/110 | SJSZ65/132 | SJSZ80/156 |
| Capacity | 80-120kg/h | 100-150kg/h | 150-250kg/h | 250-300kg/h |
PVC Ceiling Panel Production Line mainly used in PVC door & window
profiled material, wide door plate, window plate, extrusion of
multi-holes pipe for passing through (four holes, six holes, seven
holes, nine holes, etc.) For different sectional surface and molds,
twin parallel(conical) screws extruder of different specifications
can be chosen together with corresponding vacuum calibrating table,
haul-off unit, cutting unit, tilter, etc.

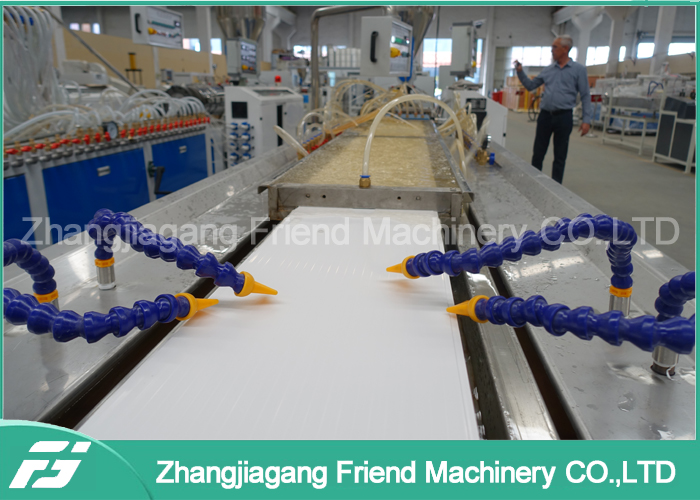

Picture:
