PVC Ceiling Panel Machine/ PVC plastic pinch plate extrusion line
Machine Discription

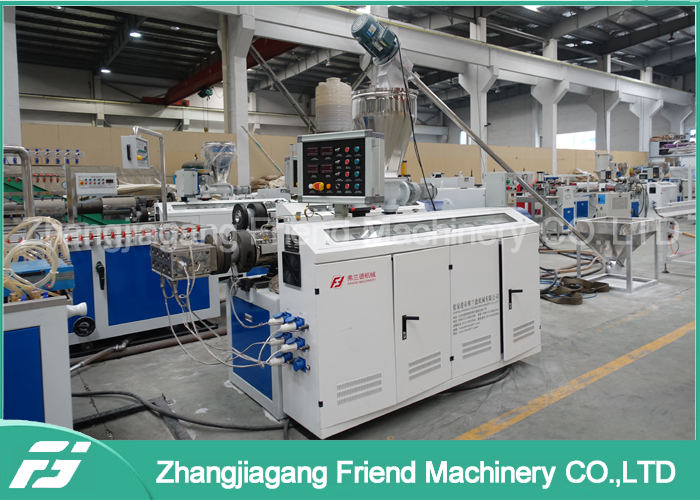

This production line adopts international technology, uses PE, PP,
PVC, PS or other plastics compounding with nature fiber powder as
the raw material, employs high efficiency conical twin screw
extruder ,mould .vacuum calibration table ,tractor and cutter.
The profile products are popularly used as the building board,
partition wall aboard, plank on storage rack and furniture board,
etc.
Technical data:
1) Easily assembly and clean
2) Without gap when concatenated
3) High intensity, corrode-resisting, aging-resisting
4) Due to PVC's high chemical stability,our panels can be used more
than 10 years
5) Prevent fire,water,antibiotic.
6) Harmless to human being and eco-friendly
7)For Ceiling and Wall decoration
8) Serial num of different specifications
9) Pvc content:45% 50% 55% 60%
10)Materials: PVC resin,Calcium Carbonate etc.
11)Packing:PE film packing,PVC shrink packing,carton 10pcs/bale or
20pcs/carton; Usually have logo on two sides,also can put on every
side.
Technical Parameter
| Model | YF180 | YF240 | YF300 | YF400 | YF500 | YF600 |
| Max. width of product(mm) | 180 | 240 | 300 | 400 | 500 | 600 |
| Extruder model | SJSZ55/110 | SJSZ65/132 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJZ80/156 |
| Max. extrusion capacity(kg/h) | 150 | 250 | 250 | 250 | 360 | 360 |
| Extruder power(kw) | 22 | 30/37 | 30/37 | 30/37 | 55 | 55 |
| Cooling water(M3/h) | 5 | 7 | 7 | 8 | 10 | 12 |
| Compressed air(M3/min) | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
Advantage
1)resistance to humidity;
2) resistance to extreme temperatures;
3) it doesn't require any special maintenance being sufficient to
wash it with water spray and a sponge;
4) doesn't get mouldy, doesn't rust or rot, doesn't require sanding
and doesn't require painting or varnishing;
5) economy of money and time due to easy and quick mounting way;
6)they can be easily replaced in comparison with tiles or
wallpapers;
7) minimum 10 years of life.
8) export goods to these areas:Middle-east,East
Europe,Africa,Russia,Asia and son on .
9)width:300mm-thickness 7.5/8/9/10/12mm; width:200mm-thickness
8/9/10/12mm; Width:600mm-thickness7mm;
