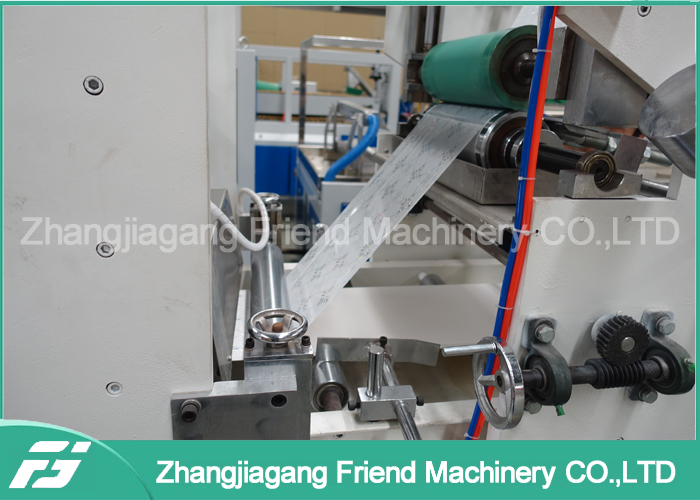

PVC ceiling panel making machine / extruder machine / extrusion line

1. Twin screw extruder with Automatic feeding system -- SJZ xx series conical twin screw extruder: (The model according to the sizes of final products to choose ) The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.

2. Die Mould and Stock Mould (Matches or according to customer's drawings or samples)

Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

3. Vacuum calibration table

Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.

4. Haul-off unit and cutting unit

5. Stacker

The stainless steel kneading board processing becomes, the air operator turn over, using with the cutter, automatically pushes the material, decides long cuts.

Application :

This kind of extruder has wide application . adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS and other plastics material to pipes, profiles, sheets and granules

Specifications

plastic extruding machine
1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption

The characteristics:

1) Installed with imported termo controllers, imported inverters or converters.

2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life

3) For the material feeding section of barrel there’re slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.

4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.

5) We also can provide a variety of exhaust-type extruder
