25~150mm PVC Wire Cable Trunking machinery plastic profile production line PVC profile machinery

Application

1. PVC Wire Cable Trunking machinery is applied to produce U channel profile which used as PVC electrical cable trunking/cable duct.

2. PVC Wire Cable Trunking machinery is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter and stacker.

3. Chang different extruding mould, PVC Wire Cable Trunking machinery can also produce PVC door & window profiles, foamed special shaped materials profiles, decoration plate material, profile and multi-hole wire plastic products, etc.

Extrusion process

PVC powder + additives → Mixer → Screw feeder → Extruder → Mould → Vacuum forming table→ Haul-off machine→ Cutting machine → Stacker

Machine description

1. Extruder: adopting high effective double screw extruder, unique designed screw, realizing shorting plasticizing time, good compounding and excellent plasticization.

2. Gearbox: adopting super quality gear box and reducer, with nice outline, stable running, low noise and long service time.

3. Extruding barrel temperature controlling system: adopting cast aluminum heaters with stainless steel covers, wind cooling system, ensuring good features of cooling and heating, precision temperature controlling.

4. Screw and barrel: screw-core installing with internal temperature controlling system, barrel equipped with vacuum degassing system, can get rid of the waste gas from the raw material which can guarantee super quality of the products.

5. Driving system: adopting A.C motor, using FUJI or ABB inverters which provide stable torque output and various speed.

6. Vacuum calibrating tank: with two aluminum racks, to install various extruding dies, the main body of the tank make of stainless steel, long service time.

7. Haul-off machines: 2 laws haul-off machines are provided to manufacture different width of profiles, haul-off speed governed by the FUJI or ABB inverter.

8. Cutting unit: saw cutting, with dust collection system.

9. Staking unit: automatic overturning system, can freely fix the length of the profile.

10. Controlling system: manual controlling cabinet or SIEMENS PLC touch screen controlling.

Our features

1. Standards: CE and ISO9001-2000 quality certificates;

2. Electric appliance control cabinet: Main transducer and feeding transducer made by Taiwan Delta company or Switzerland ABBcompany; Contact device and Circuit Breaker made by French SCHNEIDER company; (We can change the devices as your need.)

3. Main AC motor power: 37kw;

4. Feeding machine power: 0.75kw;

5. Temperature control meter: Digital show intelligence control, OMRON meter;

6. Main electricity input: three phase four wire system;

Machine Specifications

Different size of PVC Wire Cable Trunking

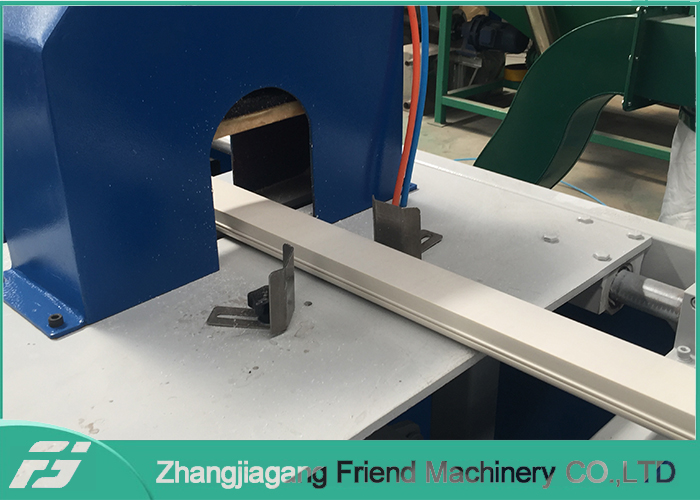

Machine pictures
