Plastic SJ-65 single screw extruder plastic extruder machine 25-60kg/h PE/PP extruding equipment

Application

• Concerning our Extruders and Extrusion Lines you can rely on an unobstructed production. Our machine conception with direct drive and barrier screw providesextremely energy-saving Extruders of low maintenance requirements.
• esde Single Screw Extruders are distinguished by their high output achievements on a low temperature level thus preventing the macro molecules from degradation and cross-linking processes. For melting the plastic material our Extruders receive the necessary heat almost exclusively from the motor. This heat is used in such an efficient way that the heating/cooling system on the barrel hardly requires operating.

Features

(1) Extrudr machine mainly apply to extrude PP/PE/PET/PPR/ABS/PS/PA etc material.
(2) It adopt special gearbox,and has features of low noisy,stable running,high capacity,long service life.Equipped with different mold and auxiliary equipments,it could produce plastic pipe,sheet,board granules and so on.

(3) It has features of simple process,high output,stable extrusion presure,and low cost.

(4)Has exported to many countries all over the world .

Technical parameters

Screw

Diameter: 35mm

Screw L/D: 25

Material: 38CrMoAlA

Rotate Speed: 12rpm

Barrel

Heating Control Area: 3 areas

Neck heating: 1 area

Heating Way: Case aluminium heaters with electric fans for cooling

Cooling System: Barrel Fan Cooling, Low-noisy

Reducer motor:

Variable-Frequency and Variable-Speed motor

Power: 2.2~5.5 Kw

Rotate speed: 1450rpm (Max)

Reduction ratio: 130:1

Product Advantage

In addition to the characteristics of general plastic pipes such as light weight, corrosion resistance, non-scaling, and long service life, PP-R pipes also have the following main characteristics: 1 Non-toxic and hygienic. 2 Heat preservation and energy saving. 3 Better heat resistance. 5 Easy installation and reliable connection. 6 Materials can be recycled.

SJ35 extruder is small extruder which has a low capacity. We also have bigger extruders such as:

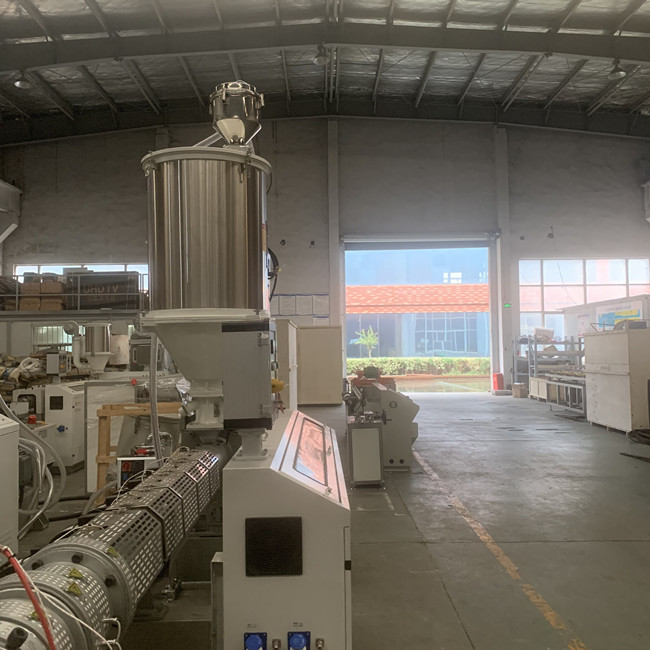

Machine pictures

Zhangjiagang Friend Machinery Co.,Ltd was established in 2010 and is located in Zhangjiagang City, Jiangsu province, enjoying convenient transportation and beautiful environment. Our company covers an area of 9000 square meters and has 60 employees. We are specialized in producing plastic machine and have an annual production capacity of 500 million US dollars. Our company has rich experience in the plastic machinery making industry. Our main products include 3D filament production line, Plastic pelletizing machine, waste plastic recycling and washing machine, plastic pipe/board/profile production line and other kinds of plastic machine. Besides, we are making great efforts to develop new products to meet different requirements. Our company has CE,and SGS certificate control the product quality. With these certificates, our products sell well in many countries, such as USA, UK, Italy, Poland, Thailand, Russia, Korea, Chile, Kingdom of Saudi Arabia and so many other countries. Except our own machine model and type, we also can customize and design the machine for customer according to their requirements. Friend machine, friendship! Adhering to the business principle of mutual benefits, we have had a good reputation among our customers because of our perfect services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us for common success.
