High Efficiency Low Consumption SJ45/30 Single Screw Plastic
Extruder Machine
Product description
Single screw
extruder can be used for HDPE, LDPE, PVC, ABS, PC, PS pipes, profiles,
sheets extruding after conmbined use with the relative auxiliary
machines.
Also it can be used for the waste plastic pelletizing.
Single screw extruder can purchase manual control and PLC automatic
control.
Single screw extruder will purchase different kinds of screw
designs according to different raw material. It has the characters
of low noise, high output, steady performance and long life span.
We have many kind of types,such as 25/25;30/25;35/25;50;
45/25;45/28;45/30;45/33;50/28;50/30;65/28;
65/30;65/33;70/30;75/33;90/30;90/33;120/15;120/22;120/32;120/33;130/32;150/10;150/30......etc
,some small single screw extruder be equipped as colormark
co-extruder ,or lab extruder; some big single screw extruder
,together with our auxiliary machine,will be equipped as whole
production line to make pipe,to make profile, to make granule.
For pipe making machine, we can supply machine for pipe diameter
from 16 mm to 1000 mm,
different diameter range will be equipped with different machines.
For granulating line, there is different capacity,different type,
such as single stage string granulating line;
double stage string granulating line;
water ring granulating line.
Details
Notch cutter:One side one notch,one side two notches,each side one
notch ,no notch.
All the direct contact parts are made of stainless steel.
The cutting unit adopted the big plate cutter and with automatic
gathering system.
The breaker ,AC contactor and knob switch brand is SCHNEIDER
The inverter brand is DELTA
Specification:
1) Diameter range for the stick: 2.5mm - 4.0mm
2) Length range for the stick: 75mm-115mm
Advantages
- Skilled workers for machines producing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery
Main Technical Parameter
| Model | Screw Diameter(mm) | L/D | Output(kg/h) | Speed(rpm) | Drive Power(kw) | Center Height(mm) |
| SJ-30 | 30 | 25-30 | 30 | 140 | 3 | 1000 |
| SJ-45 | 45 | 25-30 | 50 | 120 | 6 | 1000 |
| SJ-55 | 55 | 25-30 | 70 | 100 | 9 | 1000 |
| SJ-65 | 65 | 25-30 | 80 | 90 | 12 | 1000 |
| SJ-75 | 75 | 25-30 | 100 | 85 | 15 | 1000 |
| SJ-90 | 90 | 25-30 | 130 | 75 | 30 | 1000 |
| SJ-120 | 120 | 25-30 | 200 | 60 | 42 | 1200 |
| SJ-150 | 150 | 25-30 | 300 | 60 | 56 | 1300 |

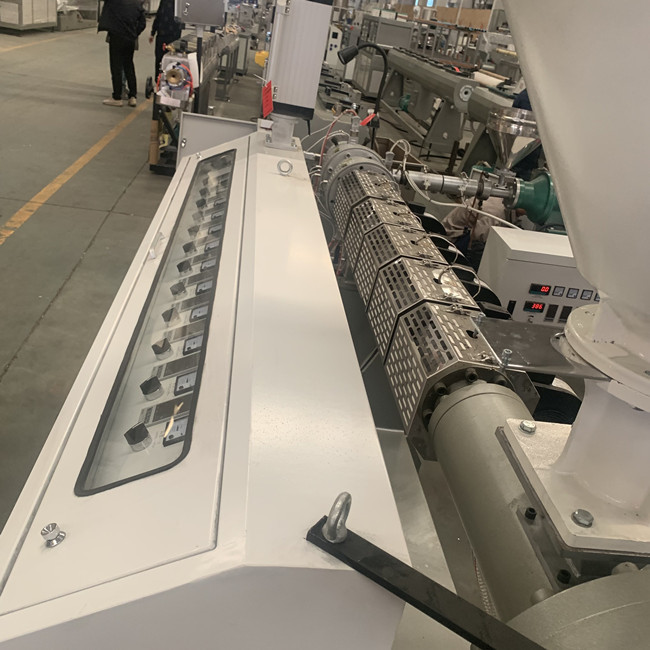

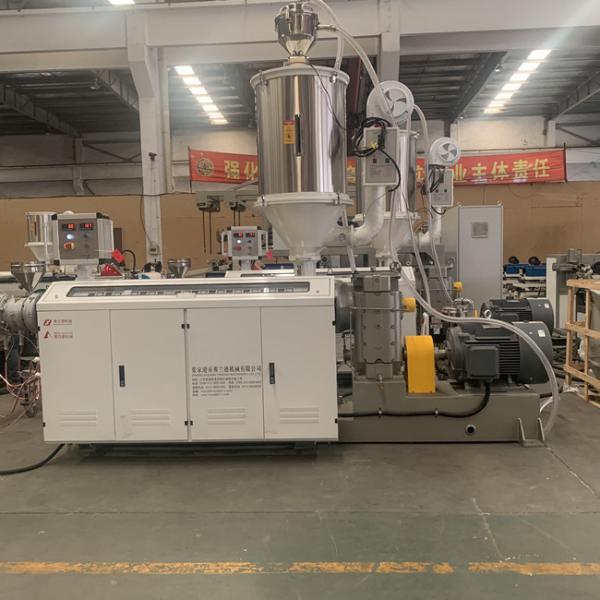

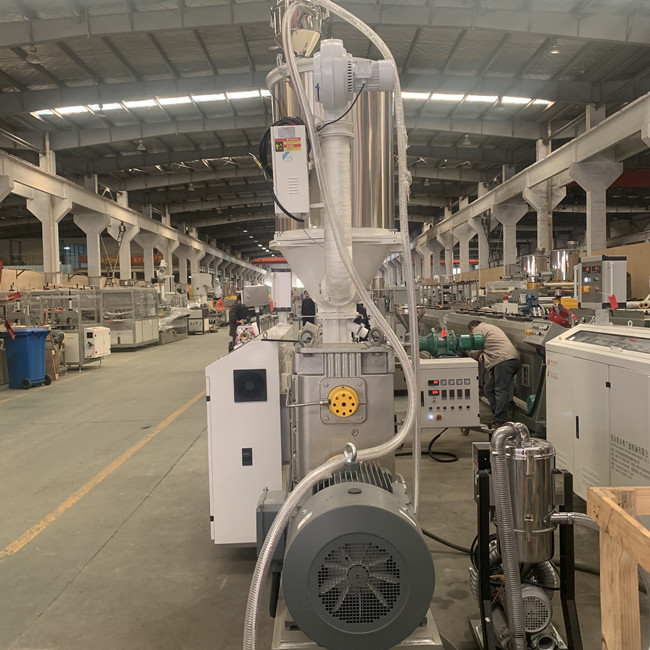

Product Pictures
