High Quality Low Consumption Latest New PE/HDPE Pipe Extrusion Line
For Sale
Description
PE plastic pipe production line is mainly used to produce water
supply and drainage pipes in agriculture, construction, cable and
other fields. The production line is mainly composed of single
screw extruder, vacuum shaping tank, spray cooling tank, haul-off,
cutter, stacker, etc.
Application
1.The large-diameter PE pipe of urban tap watar pipe network system
is hygienic,non-toxic and non scaling.It is more suitable for urban
water supply mains and buried pipes,with safety,sanitation and
convenient construction.
2.Agricultural irrigation pipe PE pipe has smooth interior,large
flow,crossroad construction and good impact resistance.It is an
ideal tool for agricultural irrigation.
3.Chemical industry,chemical fiber,foof,forestrry,pharmacy,light
industry,papermaking,metallurgy and other industrial raw material
transmission pipelines.
4.Greening the water supply network requires a large number of
water pipes.PE pipes have good toughness and low cost,making them
the best choice.
5.Sewage discharge pipe PE pipe has unique corrosion resistance and
can be used for industrial wastewater and sewage discharge pipe
with low cost and low maintenance cost.
Flow Chart
Raw material + additive → mixing → vacuum feeding machine → hopper
dryer → single screw extruder→ color band extruder → mould and
calibrator → vacuum calibration machine → cooling tank→ haul-off
machine → cutting machine → stacker
Main Technical Parameter
| Model | Screw Diameter(mm) | L/D | Pipe Range(mm) | Motor Power(kw) | Total Power(kw) | Line Length(m) |
| PE-63 | 65 | 33:1 | 16-63 | 37 | 80 | 24 |
| PE-110 | 65 | 33:1 | 75-110 | 55 | 110 | 30 |
| PE-160 | 75 | 33:1 | 90-160 | 90 | 150 | 32 |
| PE-250 | 75 | 33:1 | 110-250 | 110 | 200 | 42 |
| PE-315 | 90 | 33:1 | 160-315 | 160 | 240 | 44 |
| PE-400 | 90 | 33:1 | 200-400 | 185 | 300 | 50 |
| PE-500 | 120 | 33:1 | 250-500 | 280 | 350 | 56 |
| PE-630 | 120 | 33:1 | 315-630 | 280 | 480 | 56 |
| PE-800 | 150 | 33:1 | 400-800 | 315 | 550 | 72 |

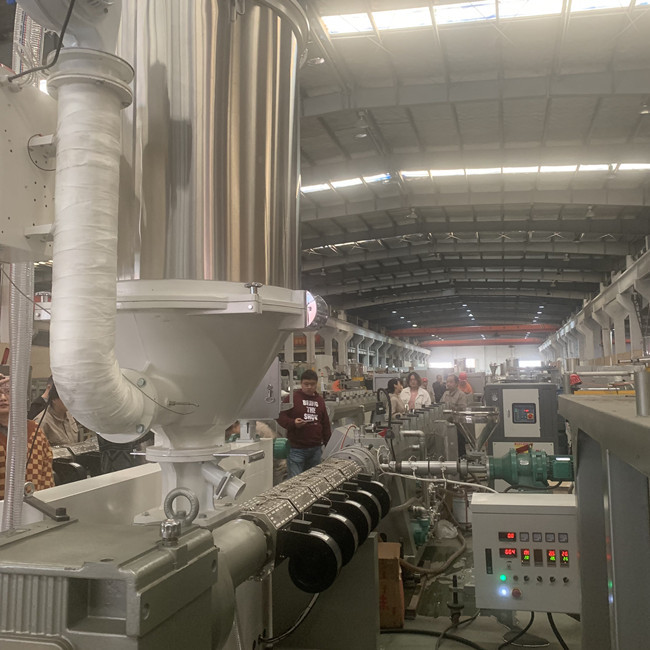

Pictures
