300kg/h SMP-500 PVC/PE/PP/PET Plastic Pulverizer Machine
Characteristics
The SMF series automatic plastic grinding mill is disc-type plastic
grinding mill series,which has the advantages of high-yield and
low-power.This machine can be used for powder processing of
PE,PVC,PP,PS,ABS,nylon and other materiels.
1),The new disc design is used,high-yield,strong resistance and the
life if this grinfding disc is double the ordinary.
2),The use of newly designed professional bearings,and reached a
high rotation rate.At the same time using only one drive motor,to
ensure the efficent grinding crash,which greatly saves the time and
operation of machinery and control engerneering.
3),Installation and maintenance is easy,open the door to cover
clean-up.
4),Milling process of the whole seal,without dust leakage.
5),Full automatic,auto matic feeding,the materials and sorting.
6),Gringding gap adjustment is simple,just use the plug-foot bolts
and adjustments can be fine
tuning.
7),The host used the water and wind double cooling system,Rational
design of smaller cross-section of the gringding chamber,grinding
is almost flat vertical surface.Material entered the grinding
chamberas soon as caught,groud,and then rapidly removed,which
eliminates the grinding chamber of the surge in materials,heating
materials to aviod decomposition,resulting in improved production.
8),For the PP and EVA/PET material,we have special design .
Features
1. Compare with same type pulverizer, the capacity of this mode is
more higher
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker
4. the cover of main machine can be opened for maintain
5.the cooling of machine have wind cooling and water cooling, it
can cool the machine body very good.
Main Technical Parameter
| Model | SMP-500 | SMP-600 | SMP-800 |
| Griding room dia(mm) | 500 | 600 | 800 |
| Speed(rpm) | 3800 | 3800 | 3800 |
| Motor(kw) | 37 | 55 | 75 |
| Fan(kw) | 2.2 | 4 | 5.5 |
| Particle size(micron) | 12-120 | 12-120 | 12-120 |
| Output(kg/h) | 150-200 | 200-300 | 400-500 |
| Vibration sieve | 0.75 | 0.75 | 0.75 |
| Cooling system | water cool | water cool | water cool |
| Weight(kg) | 1200 | 1550 | 1950 |
| Size(mm) | 5900*1450*2900 | 5900*1450*2900 | 6500*1850*2900 |

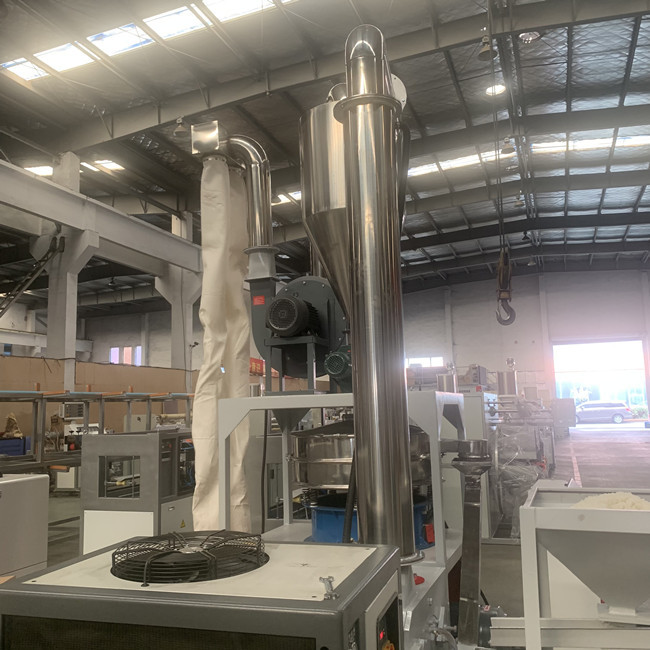

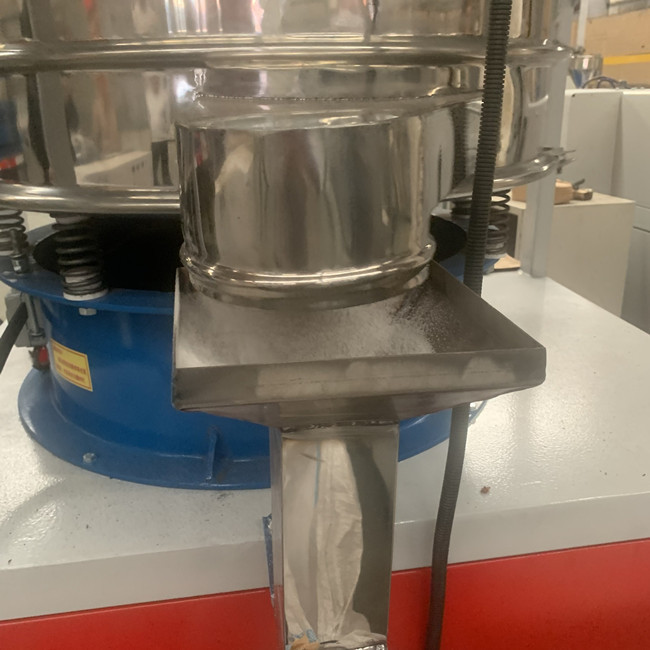

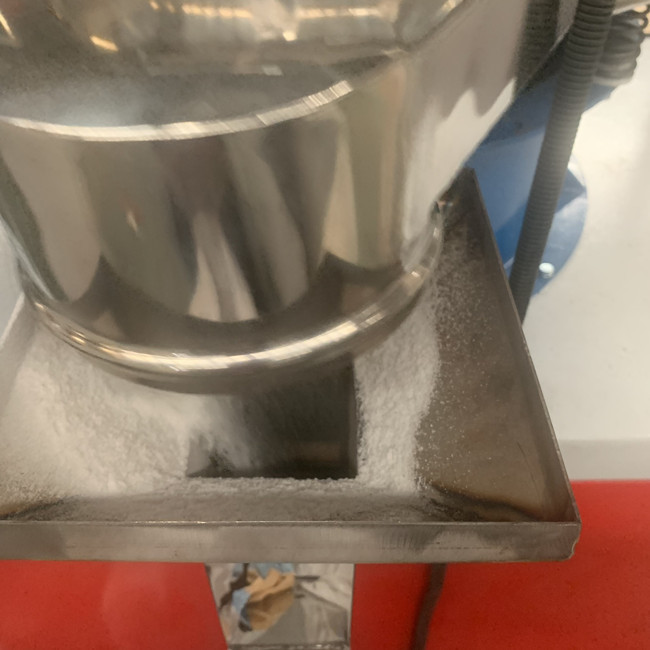

Product Pictures
