Customized 700mm PVC Panel Board Plastic Profile Production Line
Details
WPC wood plastic composite profile extruder produced by our company
adopts domestic and foreign composite technology, which has the
characteristics of high degree of automation, stable performance,
large output and high efficiency. The company is an enterprise specializing in the production of
various outdoor and indoor WPC profiles, which can replace
different molds---
Outdoor applications: WPC hollow panel, WPC solid panel, WPC beam /
joist / keel, WPC wall cladding, WPC workbench / chair, WPC fence /
railing, column / column, WPC Pavilion, WPC roof profile, etc
Indoor application: door and window profiles, furniture decoration
profiles, foam profiles, etc
Features
1) The screw and cylinder of Zhoushan extruder adopt vacuum
degassing system, which can discharge the raw material waste gas
and ensure the final particle quality.
2) Gearbox: from jiangyin gearbox company, a famous brand in China,
with beautiful appearance, stable operation, low noise and long
service life.
3) Heating system: stainless steel plate cover cast aluminum heater
and fan cooling system are adopted to ensure good cooling and
heating performance and accurate temperature control.
4) Drive system: Siemens motor and ABB frequency converter are
adopted, with stable torque output and various speeds.
5) Vacuum calibration cooling workbench: the workbench is made of
#304 stainless steel with good strength and long service life.
6) Traction machine: rubber block traction belt, and the traction
speed is adjusted by ABB frequency converter.
7) Cutting machine: saw blade cutting, low noise, fast cutting
speed, with dust suction device.
Flow Chart
pvc powder+wood powder+additives → mixing → extrusion line (
conical twin-screw extruder → profile extrusion die → profile
moulds→ vacuum calibration platform →haul-off → cutter →stacker →
finished product) → surface finish processing ( like heat
transfer,sanding, embossing,etc)
Main Technical Parameter
| Model | SJSZ-51/105 | SJSZ-65/132 | SJSZ-80/156 |
| Max production width(mm) | 200 | 250 | 600 |
| Extruder capacity(kg/h) | 100-120 | 150-180 | 250-380 |
| Main motor power(kw) | 22 | 37 | 75 |
| Vacuum pump power(kw) | 3 | 7.5*5.5 | 11*7.5 |
| Calibrating table length(mm) | 4000 | 6000 | 6000 |

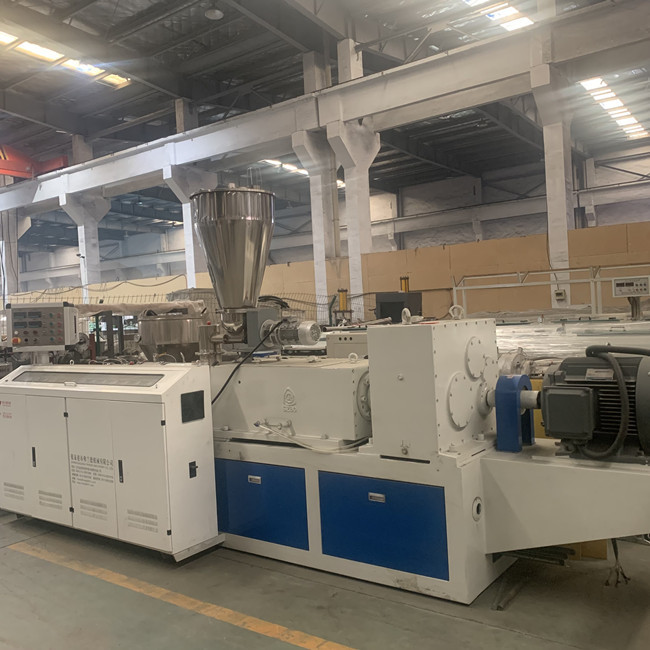

More Product Pictures
