PVC granules Siemens motor spiral hose machine PE pipe extrusion
line
Application
Soft and hard PVC spiral reinforced pipe has the characteristics of
corrosion resistance, negative pressure, bending resistance and
good fluidity. Therefore, the pipeline suitable for transporting gas and liquid
has been widely used in industry, agriculture, construction and
other fields.
Features
1. The plastic single wall corrugated pipe machine can produce
pp-pe-pa-pvc-eav corrugated pipes, which are widely used in
automobile and machine tool harness protection pipes
2. Equipped with vacuum pump, it can produce washing machine pipe,
air conditioning pipe, hookah pipe, wash basin drainage pipe,
medical pipe, etc
3. Gear drive die
4. Water cooling and air cooling
Advantages
1. Spiral reinforced PVC hose machine is used to produce PVC spiral
reinforced hose
2. It is composed of two extruders, forming unit, water tank,
Winder and electric box.
3. The pipe is reinforced with soft PVC and hard PVC, with the
characteristics of corrosion resistance, negative pressure
resistance, bending resistance, etc.
4. It is suitable for conveying gas and liquid, and is widely used
in industry, agriculture, construction, irrigation and other
fields.
Details
1. Uniform plasticization
2. High efficiency and high capacity
3. Automatic degree system
4. Perfect man-machine interface
5. Stable operation and convenient operation
6. Famous brand components
Main Technical Parameter
| Extruder model | SJ55/30 SJ45/25 | SJ65/30 SJ65/25 |
| Diameter range(mm) | 25-50 | 64-150 |
| Haul-off speed(rpm) | 2-10 | 0.2-2 |
| Max output(kg/h) | 20-40 | 40-75 |
| Total installed power(kw) | 31 | 58 |
| Actual power counsmption(kw) | 21 | 40 |
| Overall diamension L*W*H(m) | 15*4*2 | 16*5*2.5 |
| Overall weight(kg) | 3200 | 4300 |

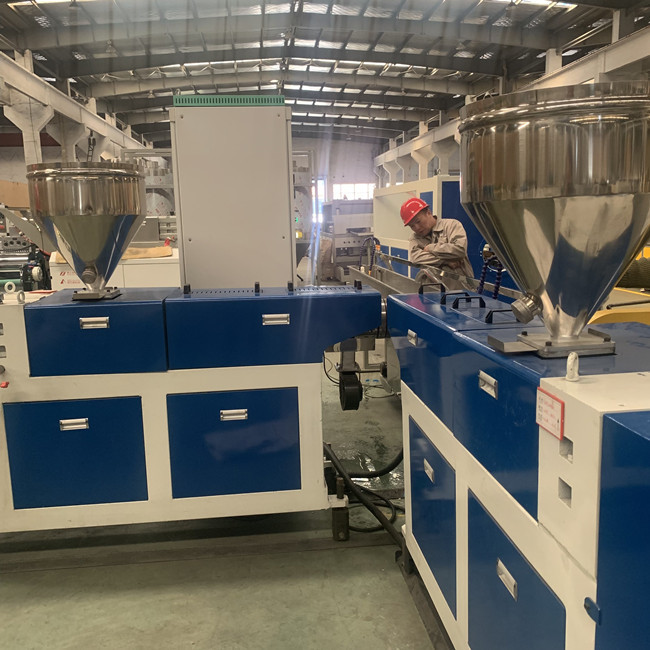

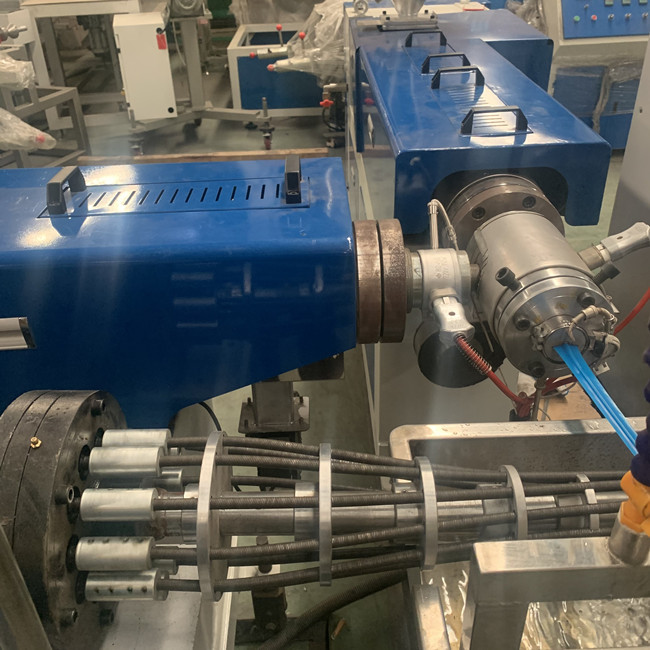

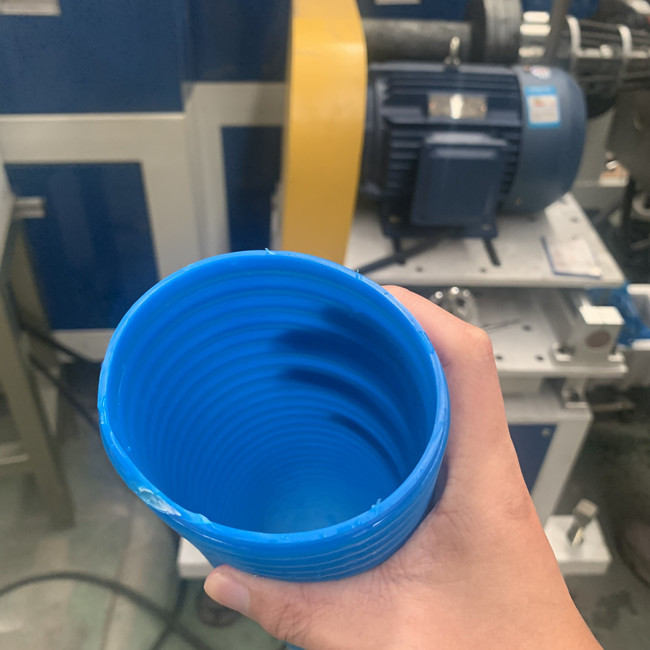

More Pictures
