20-110mm agricultural use water supply plastic pipe machine
PVC,PP,PE pipe
Application
1. Urban tap water pipe network system
Large diameter PE pipe is sanitary, non-toxic and non scaling. It
is more suitable for urban water supply mains and buried pipelines,
with safety, sanitation and convenient construction.
2. Agricultural irrigation pipeline
PE pipe has smooth interior, large flow, cross road construction
and good impact resistance. It is an ideal tool for agricultural
irrigation.
3. Industrial material pipeline
Chemical industry, chemical fiber, food, forestry, pharmacy, light
industry, papermaking, metallurgy and other industrial raw material
transmission pipelines.
4. Greening water supply network
Landscaping requires a large number of water pipes. PE pipes have
good toughness and low cost, making them the best choice.
5. Sewage discharge pipe
PE pipe has unique corrosion resistance and can be used in
industrial wastewater and sewage discharge pipeline with low cost
and maintenance cost.
Advantages
The screw adopts a comprehensive mixing part with stop and mixing
melting head, and the new slotted cylinder has good performance
Methods of plasticization and mixed melting. It ensures fast extrusion speed and good performance. Equipped with special extruder and marking machine, PE large
diameter thick wall pipe die adopts the latest screw or basket
technology to ensure stable and reliable extrusion. Water film lubrication and water seal cooling system are adopted to
meet the material requirements of PE. Ensure the stability of diameter and roundness when producing thick
wall pipes at high speed. The specially designed multistage vacuum cooling device and special
high-pressure cooling system ensure the extrusion of large-diameter
and high-pressure polyethylene pipes. According to the pipe specification, the puller includes three jaw,
four jaw and six jaw pullers. The ultra precision speed regulation system is adopted, and the
operation is stable and reliable. The cutting tool adopts planetary cutting tool, which is controlled
by computer with a high degree of automation and avoids a long
maintenance cycle. High density polyethylene pipe machine
Features
1. It is controlled by computer system and operated by touch
screen, with stable production process, convenient operation, high
efficiency and energy saving.
2. The feeding, selection and ordering, conveying and insertion,
pipe extrusion, drilling and rolling of the emitter can be
completed synchronously with a high degree of automation.
3. The extruder screw and barrel are made of high-quality 38CrMoAlA
Steel. After ion nitriding treatment, the surface hardness can
reach hv850-1000. The screw adopts optimized design, the extruded material is
plasticized evenly and the pipe surface is smooth.
4. The extrusion die and forming cooling device are made of special
materials, with unique structure and stable sizing.
5. The tractor adopts frequency conversion control, which can meet
the speed requirements of different process technologies. There is a rubber protective layer on the track surface to
effectively prevent the drip irrigation pipe from being stuck and
deformed by the tractor.
6. The drilling machine adopts mechanical method to drill holes. It has the characteristics of fast drilling speed and good
stability
activity
7. The line adopts double station plate bending machine, and the
plate bending length can be set according to the actual needs.
Main Technical Parameters
| Model | Pipe diameter(mm) | Extruder | Max output(kg/h) | Haul-off speed(m/min) | Motor power(kw) |
| PE63 | 16-63 | SJ65/33 | 220 | 12 | 55 |
| PE110 | 20-110 | SJ65/33 | 220 | 12 | 55 |
| PE160 | 50-160 | SJ75/33 | 300 | 10 | 90 |
| PE250 | 90-250 | SJ75/33 | 400 | 8 | 110 |
| PE450 | 160-450 | SJ90/33 | 500 | 5 | 160 |
| PE630 | 315-630 | SJ120/33 | 850 | 3.3 | 280 |
| PE800 | 500-800 | SJ120/33 | 1000 | 1.8 | 315 |
| PE1200 | 710-1200 | SJ150/33 | 1300 | 0.8 | 355 |

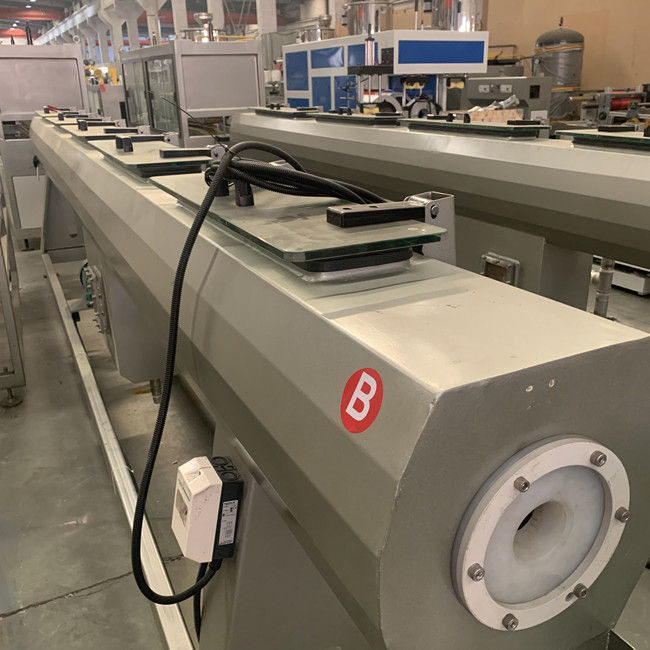

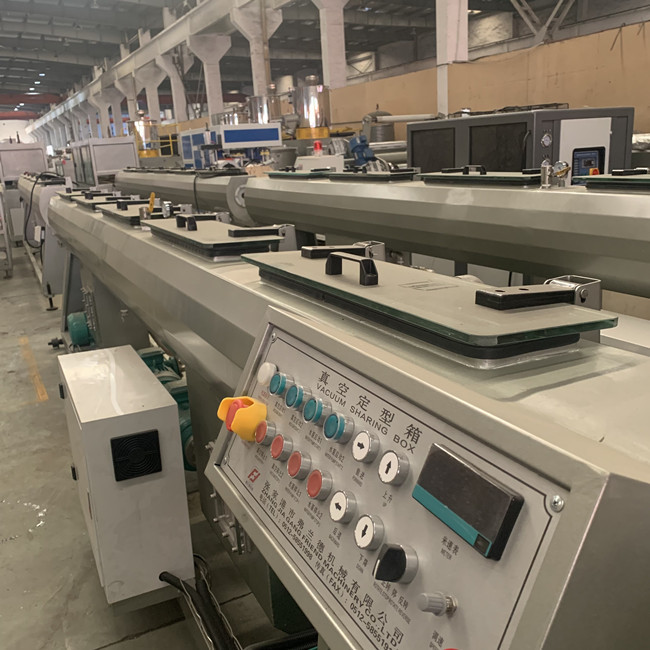

Product Pictures
