Waste Plastic Fiim Agglometor Densifier Machine/Plastic Recycled
Granules Machine
Features
1. Optimize the fully enclosed sound insulation structure to ensure
low noise level during operation.
2. It is equipped with current relay, motor overload protector and
various safety devices to ensure safe operation.
3. The cutting tool is made of high-quality steel with good wear
resistance and high rigidity.
4. Cyclone dust collector can effectively remove the air in
regrinding, which is convenient for material collection.
Details
1. When waste plastic is supplied into the chamber of the machine,
it will be cut into smaller pieces due to the crushing function of
rotating knife and fixed knife.
2. In the crushing process, the material and container wall that
absorb a lot of heat from the friction movement of the crushed
material will enter the semi plasticized state. Due to plasticization, particles adhere to each other.
3. Spray the prepared cold water into the crushed material before
it completely sticks together. The water will evaporate rapidly and the surface temperature of the
crushed material will drop rapidly. Therefore, the crushed material will become small particles.
4. In the crushing process, by putting the colorant into the
container, it is easy to identify particles of different sizes and
color them.
Application
Agglomerator can directly recycle the waste plastic films and other
products less than 2mm wall thickness into granules. It is suitable
to agglomerate the waste products or films made of soft PVC, HDPE,
LDPE, PP and other thermo plastics. When the waste plastic is
supplied into the chamber of such machine, it will be cut into
smaller chips due to the crushing function of the rotating knife
and fixed knife. During the crushing processing, the material that
soaked up lots heat from the frictional movement of material being
crushing and the material will be going to become semi-plasticizing
state. The particles will stick with each other due to the function
of plasticization.
Characteristics
1. Recycle the waste and leftover materials of various soft plastic
films, bags, wires, tapes, sheets and pipes such as polyvinyl
chloride, high-density polyethylene and low-density linear
polyethylene, and recycle them.
2. Grinding, mixing and dyeing can be completed at one time.
3. Low temperature granulation basically does not damage the
molecular structure and physical properties of the material.
Main Technical Parameters
| Mould | GSL-100 | GSL-300 | GSL-450 | GSL-800 |
| Volume(L) | 100 | 300 | 450 | 800 |
| Effective volume(L) | 75 | 200 | 350 | 550 |
| QTY of rotary blade | 2 | 2 | 2 | 4 |
| QTY of fixed blade | 6 | 6 | 8 | 8 |
| Speed(rpm) | 1050 | 950 | 950 | 760 |
| Power(kw) | 37 | 55 | 75 | 110 |
| Capacity(t/day) | 2.4 | 6 | 8 | 12 |
| Weight(kg) | 800 | 1000 | 1200 | 1500 |
| Size(m) | 1.7*0.75*1.5 | 2*1.1*1.8 | 2.35*1.25*1.95 | 2.6*1.4*2.3 |

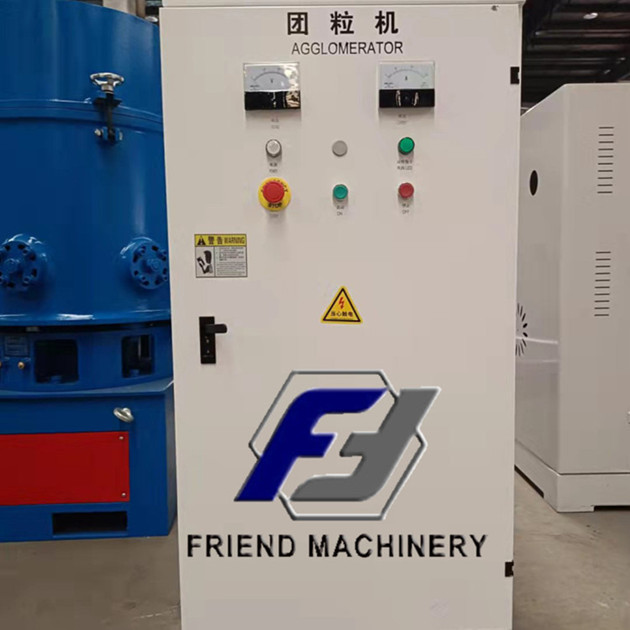

Product Pictures
