PE PP PVC PLA HDPE water pipe irrigation supply plastic extruder
machine
Details
The extrusion line can be used for the production of polyethylene
pipes with different diameters, and has excellent stiffness and
flexibility, heat resistance, aging resistance, high mechanical
strength, environmental stress crack resistance, creep deformation
resistance, thermal connection and other properties.
Therefore, the pipeline production line is the first choice for
gas, water pipe and agricultural irrigation pipeline system between
urban and rural areas.
Information
Single screw extruder installed on machine tool made of section
steel and steel plate. It is equipped with 45 mm, 60 mm, 75 mm or 90 mm diameter
plasticized screws, made of normalized, Quenched and tempered
steel, and can be equipped with temperature control system and
nitrided steel cylinder with 4 independent temperature control
zones. Extruders also have different length / diameter ratios.
Features
1, Kinds of Models: SJ45/30, SJ65/33, SJ75/33, SJ90/33,
SJ20/33,SJ150/33;
2, Composing separate type screw and mixing parts
3, This can be used in plasticizing and extruding.
4, Kinds of plastic products such as film pipe, plate, braid, belt
as well as pelletizing, plate, thread , ribbon, insulating layer of
cable, hollow products.
Advantages
1. Large extrusion capacity;
2. Advanced design, good plasticization and low energy consumption;
3. Competitive price and high-quality service.
Main Technical Parameters
| Model | SJ45/30 | SJ65/33 | SJ75/33 | SJ90/33 | SJ150/33 |
| Screw Dia.(mm) | 45 | 65 | 75 | 90 | 150 |
| L:D | 30:1 | 33:1 | 33:1 | 33:1 | 33:1 |
| Motor(kw) | 18.5/22 | 37/45 | 75 | 110 | 260 |
| Heating power(kw) | 13.5 | 16.5 | 37 | 42 | 80 |
| Capacity(kg/h) | 30-60 | 50-100 | 80-160 | 150-250 | 500-800 |

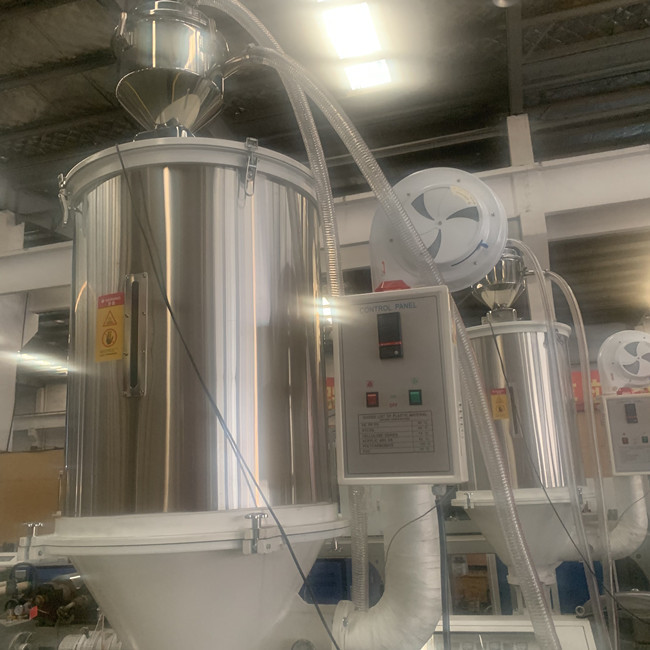

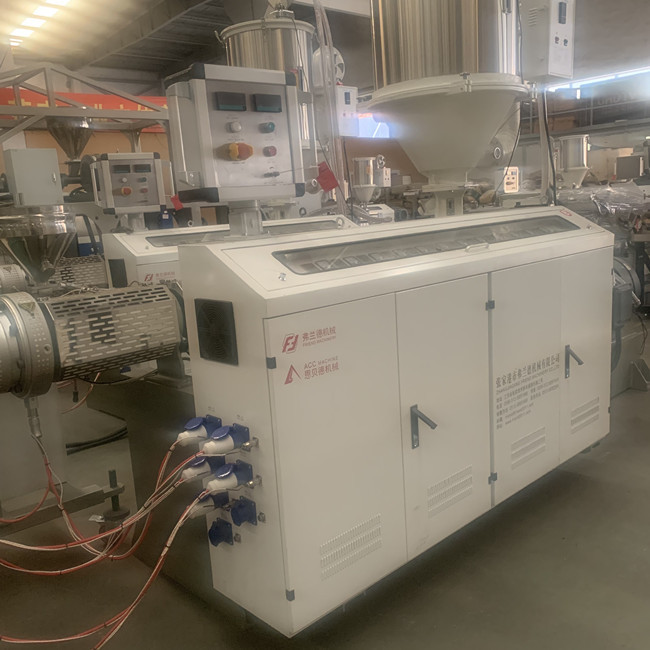

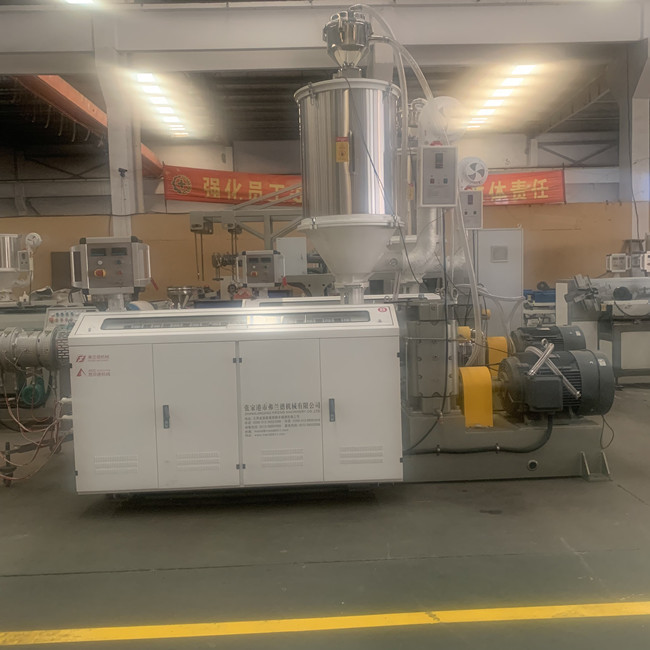

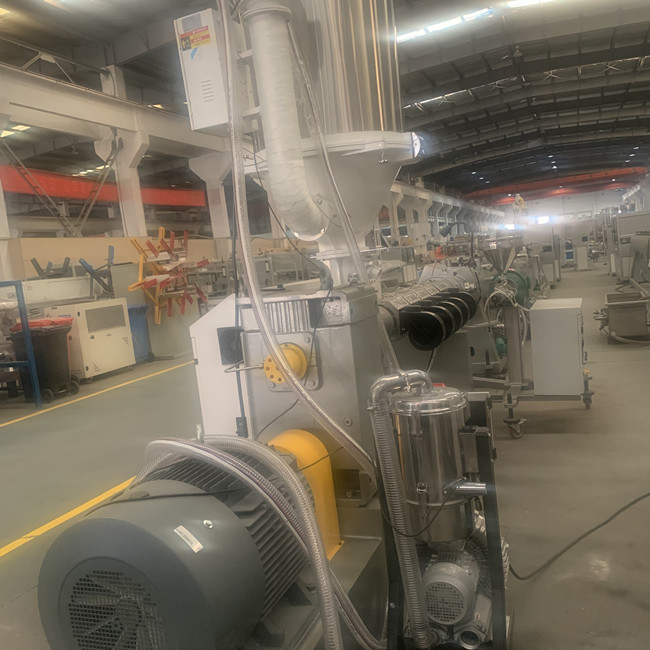

More Product Pictures
