LDPE Plastic Pipe Machine 20-110mm Plastic Making Machine
Agricultural Film Use
Introduction
The extrusion line can be used for the production of polyethylene
pipes with different diameters, and has excellent stiffness and
flexibility, heat resistance, aging resistance, high mechanical
strength, environmental stress crack resistance, creep deformation
resistance, thermal connection and other properties.
Therefore, the pipeline production line is the first choice for
gas, water pipe and agricultural irrigation pipeline system between
urban and rural areas.
Application
1. Urban tap water pipe network system
Large diameter PE pipe is sanitary, non-toxic and non scaling. It
is more suitable for urban water supply mains and buried pipelines,
with safety, sanitation and convenient construction.
2. Agricultural irrigation pipeline
PE pipe has smooth interior, large flow, cross road construction
and good impact resistance. It is an ideal tool for agricultural
irrigation.
3. Industrial material pipeline
Chemical industry, chemical fiber, food, forestry, pharmacy, light
industry, papermaking, metallurgy and other industrial raw material
transmission pipelines.
4. Greening water supply network
Landscaping requires a large number of water pipes. PE pipes have
good toughness and low cost, making them the best choice.
5. Sewage discharge pipe
PE pipe has unique corrosion resistance and can be used in
industrial wastewater and sewage discharge pipeline with low cost
and maintenance cost.
Features
1. Advanced products are adopted for vacuum pump and traction motor
2. Screw extruder and traction machine adopt imported AC frequency
conversion speed regulation device.
3. Traction machine includes two claw type, three claw type, four
claw type, six claw type, eight claw type, etc.
4. Additionally equipped with length measuring instrument and
thickening device, the unit has reliable performance and high
production efficiency.
Product Parameters
| Pipe Range(mm) | 16-63 | 20-110 | 75-160 | 90-250 | 110-315 |
| Extruder | 65/30 | 65/33 | 75/30 | 75/33 | 90/33 |
| Motor Power(kw) | 30/37 | 55/75 | 75/90 | 90/110 | 132 |
| Capacity(kg/h) | 60-130 | 100-150 | 200-300 | 220-350 | 300-400 |
| Max Speed(m/min) | 15 | 10 | 8 | 6 | 3 |

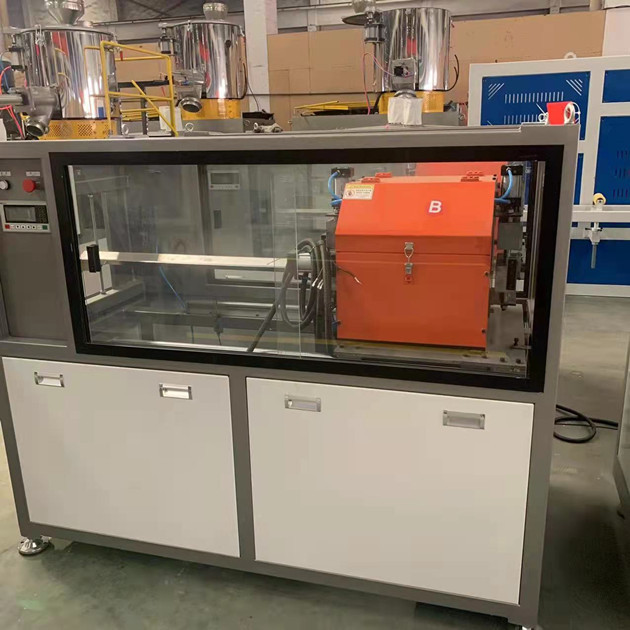

Product Pictures
