16mm-2000mm Drip Irrigation Pipe 3 Layer HDPE Plastic Pipe Machine
With Single Screw Extruder
Application
Drip irrigation pipe is an important irrigator in drip irrigation
system,According to the requirements if crop water demand,through
the low-pressure pipeline system and the irrigator installed on the
capillary,water and crop nutrients need to drip into the soil of
crop root area evenly and slowly,At pressent,it is the most
effective water saving irrigation method in arid and water scarce
areas,it can be applied to the irrigation of fruit
trees,vegetables,cash crops and greenhouses.
Details
1- 30m/min of maximum lineal extrusion speed, big capacity and low
power consumption, and achieved multi- layers co extrusion with 1-5
layers.
2- The copper bush is more wear-resisting and prevent material
leakage which can guarantee a stable running of extruder.
3- Material feed via spiral groove, efficient transmission and can
effectively reduce back-pressure on extruder.
4- Unique design (barrier, shearing and mixing zone) guarantees a
uniformed plasticizing effect, and can reduce the pressure on the
screw which guarantees a high speed and stable output capacity.
5- High torque gear box has a smart figuration, compact
construction, low noise, high carrying capacity, high transmission
efficiency can assure long-time trouble-free operation;
6- PCA(pipe air cooling system) of die head largely increase the
extrusion speed and decrease the cooling length of extrusion line,
and improve quality of inner pipe surface;
7- Intelligent PLC controlling system with human-friendly interface
make the operation easily and conveniently;
8- Chip-free cutter ensuing flat and smooth cutting surface of
pipe.
Advantages
1.The production is stable and reliable. The emitter transmits
even. The punching position is accurate. The chip can be removed
easily.
2.It adopts PLC control, which is operated conveniently.
3.According to the production requirement, it can produce products
with different specifications after changing the mold, conveying
and punching parts.
4.Electrical components adopt domestic famous brand. The servo
system adopts imported components.
5.Matched with meters alarming device.
6.It also can be used to produce common dripping pipes.
Main Technical Parameters
| Components | Qty(set) |
| Dripper transferring system | 1 |
| Automatic material feeding and drying system | 1 |
| SJ65-33 single screw extruder | 1 |
| Mold-die head | 1 |
| Vacuum water tank | 1 |
| Cooling water tank | 1 |
| Tractor(with meter counter) | 1 |
| Punching system | 1 |
| Winding machine | 1 |
| Electric cabinet | 1 |
| Spare parts | 1 |
| Extruder model | Pipe meter(mm) | Production capacity(kg/h) | Total power(kw) |
| SJ50 | 16-63 | 100-150 | 75 |
| SJ65 | 75-160 | 300-350 | 160 |
| SJ75 | 200-400 | 600-700 | 280 |
| SJ90 | 450-630 | 800-850 | 350 |
| SJ120 | 710-1200 | 1200-1300 | 700 |
| SJ150 | 1200-2000 | 1400-1500 | 1000 |

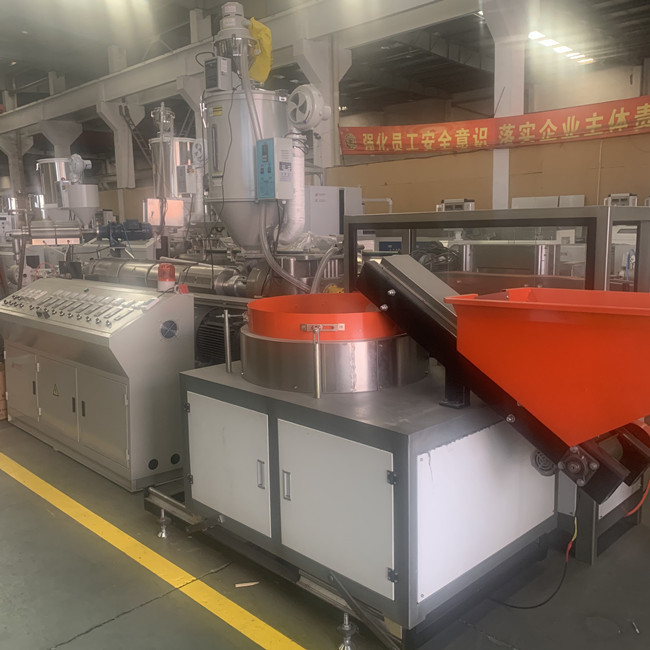

Product Pictures
