PVC Pipe Machine 16-63mm Electrical Water Pipe Plastic Pipe Machine
Details
PVC pipe extruder machine /VC pipe making machine/PVC pipe
extrusion line is mainly used in the manufacture of the UPVC and
PVC pipes with various tube diameters and wall thickness such as
the agricultural and constructional plumbing, water supply and
drain etc.

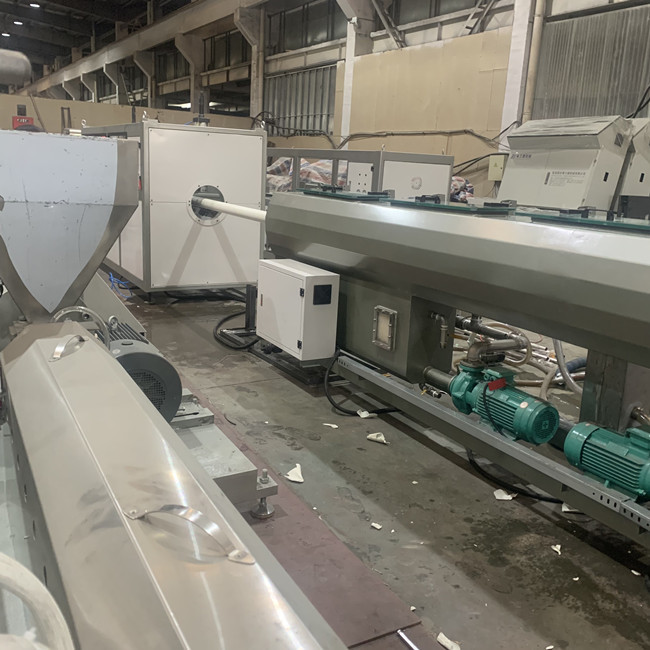

This set is composed of conical twin-screw extrude, vacuum
calibration tank, haul-off machine, cutter, stacker etc. The screw
extruder and traction machine adopt imported AC frequency control
device. The vacuum pump and traction motor both adopt advanced
products. The haul-off machine has many models, such as two-claw,
three-claw, four-claw, six-claw etc. It may choose visual blade or
cutting type.The unit is of reliable performance and high
production efficiency.
Our machine can produce the PVC pipe with diameter from 16mm to
630mm
Advantages
The innovative technology of our extruders allows us to create
versatile lines for the processing of plastic and new thermoplastic
materials.
Completely customisable lines, whose winning feature is their
ability to adapt perfectly to any technical need. We also offer
ongoing support, which starts during the pre-sales analysis phase
and continues with a reliable and comprehensive assistance an
supply service.
Motorisation
Single static frequency converter. Both mechanical and electronic
synchronism makes the motor rotation more constant and increases
the machine efficiency.
Frequency converter
Chosen for the motorisation of our extruders, it guarantees the
same speed of the four motors, greater energy savings, lower instal
lation and maintenance costs, more solidity and durability over
time and perfect power distribution across all motors.
Thrust system
The multi-stage thrust bearings used on MD twin screw extruders
make it possible to triple the dynamic load and make the extruders
ideal for managing high production levels.
Feeding systems
It is possible to equip each machine with customized feeding
systems. This ensures adjusting the layout of the line and its
technical characteristics to the material to be processed and to
any specific production requirement.
PLC touch screen
Each extruder mounts a PLC control panel with touch screen, with
the possibility of controlling each phase remotely.
Moreover,algorithms and mathematic formulas allow processing the
energy consumption.
Cooling System
The correct thermoregulation of the barrels and screws is the key
to obtain high quality extruded products. That's why we have
developed an advanced, efficient cooling system, reliable at any
production speed.
Application
PVC Plastic pipe extrusion line is mainly used in Water supply
pipelines, Sewage pipelines & Rainwater drainage pipelines & Air
conditioning condensate water systems & Electrical conduit
pipelines etc. The unit consists of Conical (Parallel) double screw
extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting
machine-Stacker/Belling machine. And the line can be equipped with
Comptroller thickening instrument, computer ink-jet printer,
crusher, shredder, Pulverizer ,water chiller, air compressor etc.
to achieve the production and manufacture of high-grade tubing.
Advanced design for screws and barrel supplies powerful safeguard
for the PVC plasticization.
Main Technical Parameters
| Mode | Pipe Range(mm) | Extruders | Max. Output(kg/h) | Max. Speed(m/min) | Total Power(kw) | Line Length(m) |
| PVC-50*2 | 16-50 | SJSZ51/105 | 150 | 6 | 60 | 20 |
| PVC-63 | 16-63 | SJSZ45/90 | 120 | 10 | 45 | 20 |
| PVC-110 | 50-110 | SJSZ51/105 | 150 | 6 | 60 | 24 |
| PVC-160 | 63-160 | SJSZ65/132 | 300 | 5 | 100 | 24 |
| PVC-250 | 110-250 | SJSZ80/156 | 400 | 3.5 | 120 | 28 |
| PVC-315 | 160-315 | SJSZ80-156 | 400 | 3 | 160 | 28 |
| PVC-450 | 250-450 | SJSZ92/188 | 700 | 1.5 | 200 | 36 |
| PVC-630 | 315-630 | SJSZ92/188 | 700 | 0.9 | 230 | 36 |
