    Mini SJ25 SJ45 Plastic Extruder Machine For Making PP PE Pipe

    Ask Lasest Price
    Brand Name : Friend
    Model Number : SJ20
    Certification : CE,SGS,UV
    Price : negotiation
    Supply Ability : 20 sets per year
    Delivery Time : 30 making days
    • Product Details
    • Company Profile

    Mini SJ25 SJ45 Plastic Extruder Machine For Making PP PE Pipe

    Plastic Mini SJ25 SJ45 Extruder Machine Machinery For Making PP PE Pipe Plastic Extruder

    1. Advantages

    • Lower specific energy consumption; energy saving could be up to 30% plus.
    • Higher capacity: the capacity could be 50% more at the same diameter
    • More accuracy in extrusion processing controlFeatures:
    • Controller: Normal, PID or PLC (optional)
    • Can be combined with various auxiliary machinery
    • Specially designed screw, high-torque decelerator and high power DC motor ensure good mixture of material and high output


    2, Main Technical Standards:

    Model No. SJ25
    Screw Diameter25 mm
    Ratio of L/D25:1
    Screw Material38CrMoAlA
    Hardness of ScrewHV900-1000
    Depth of Nitrogen Treatment0.4-0.7 mm
    Screw Straightness<0.015 mm
    Main Motor Power2.2KW
    Heating MethodCeramic Heater
    Heating Zones3 Periods(Screw Barrel 2periods,Head Piece 1 Periods)
    Heating Power:1.5KW*3=4.5KW
    Cooling Method:Forced Air Cooling
    Fan Motor Power60W*2=0.12KW
    Screw Maximum Rotating Speed40 rpm
    Maximum Capacity1-3Kg/h
    2,Main Parts:
    Name:Manufacturer:
    Main Motor

    AC Motor


    Screw and BarrelJinjiu Screw
    Electrical System

    Siemens Contactor

    RKC Temperature Control Meter

    ConverterABB Frequency Converter
    PLC controlyes
    3,Equipment Simple Description

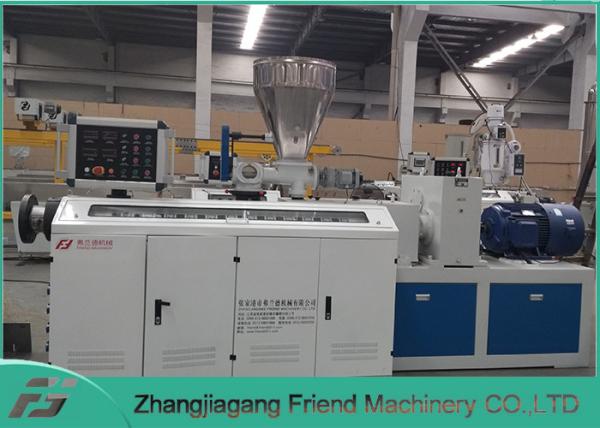

    The extruder is applied for plastic extrusion, through the hopper into the barrel, the material goes into the mould through the screw’s transmission, compression, mixing and measurement. The material of screw and barrel is 38CrMoAlA, after quenching , tempering and nitrogen treatment.


    Why choose us?


    We are a professional manufacturer of Plastic Extruders ,we produce plastic extrusion machine.

    1. Cost performance is high

    All the machine ,we make it ourself to reduce the cost of our customer.

    2. Genuine product with excellent quality

    We choose our material andequipment strictly.

    All the material come to our factory must pass the quality test.

    3. Engerneers available to serve oversea

    4. Quick delivery

    The company provide just in time delivery with its streamlined supply chain.

    5. Cost saving

    We take strong attention to every detail in the manufacturing process.

    The quality control in our factory is very strict.

    All defective semi-manufactures must be treated again or reject.

    All the machine must be checked out ,then delivered to our customer.

    All about that pushing up the price,but get good quality machine.

    What we want to do is give our customer a good quality product with stable working and long lived.


    Q: What is your delivery time?

    A: Normally, it needs about 30 days. The exact time depends on production management.


    Q: How long is your delivery time?

    A: Generally it is 10-20 days if the goods are in stock. or it is 35-60 days if the goods are not in stock, it is according to quantity.
