Brand Name : | FRIEND |
Model Number : | FLD-600 |
Certification : | CE |
Price : | USD 20000/set |
Payment Terms : | L/C, T/T |
Supply Ability : | 5 sets per month |
Delivery Time : | 55 word day |

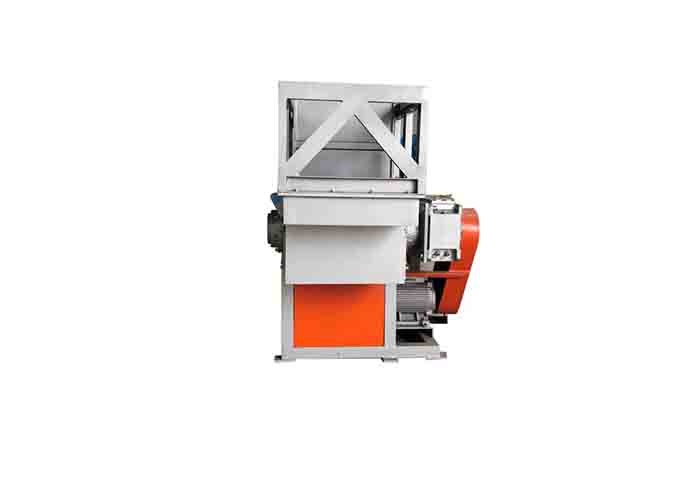

PP PE PVC Single Shaft Shredder for Pipe Board and Profile
the plastic shredding and crushing machine is used for the waste
plastic such as large volume waste (die head material, thick-walled
large diameter plastic pipe), rod, film, paper, fiber, etc
the machine can do the shredding and crushing continously, it can
bring the more smaller materials scraps for better reuse.
1.adopts high quality tool steel crushing blades and independent
control box
2.stable and safe operation
3.lower noise
4. Suitable for the winding material, allow small amount of light
metals.
5. Blades use and maintenance costs are low
Single Shaft Shredder
Model | DZ-600 | DZ-800 | DZ-1000 |
Motor power(kw) | 22 | 37 | 55 |
Rotor diameter(mm) | 310 | 400 | 400 |
Rotary blades(PCS) | 24/40 | 46/56 | 58/68 |
Fixed blades(PCS) | 2 | 2 | 2 |
Blade material | SKD11 | ||
Feeding mouth size(mm) | 600*700 | 800*1000 | 1000*1100 |
Rotary speed(rpm) | 80-85 | 80-85 | 80-85 |
Cylinder trip(mm) | 600 | 800 | 1000 |
![]() |
