    200mm 240kg/H PVC Electrical Conduit Plastic Pipe Machine

    Ask Lasest Price
    Brand Name : Friend machinery
    Model Number : FLD-250
    Certification : CE ISO SGS
    Price : USD+48000+set
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1+set+per 45
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

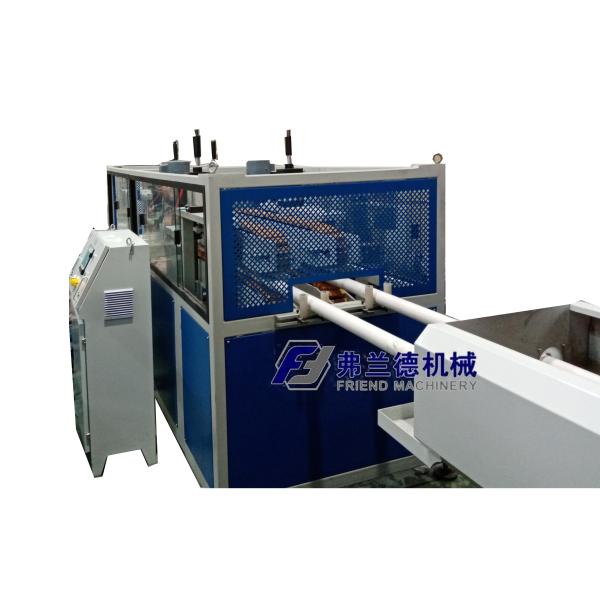

    200mm 240kg/H PVC Electrical Conduit Plastic Pipe Machine

    water pipe PVC pipe machine/UPVC pipe machine

    1. Powder feeder: It is made of high quality stainless steel. It has the characteristics of high pressure and corrosion resistance. It can transport PVC powder well.

    2. Conical twin screw extruder: It is equipped with a mandatory quantitative feeding system, automatic temperature control system, vacuum exhaust system and automatic speed control system to ensure accurate control of the material temperature and plasticization of the stability.

    3. PVC pipe mold: Mold material is 45 # quenched and tempered steel by forging processing and surface polishing. Due to the low melt pressure, it can keep the low melt temperature in high extrusion.

    4. Vacuum calibration tank: Due to the high hardness and high quality stainless steel plate manufacturing, the tank is resistant to high pressure and corrosion resistance.

    • PVC electrical conduit pipe extrusion line is used to produce pvc electric conduit pipe with diamater from 16 to 50mm, which are flexible, bendable in the aspect of electric wire protecting.
    • Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
    • Diameter: Friend machinery succeed in designing and producing the biggest conical twin-screw extruder in the world.
    • Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.

    PVC pipe machine parameters:

    Model
    Main extruder motor
    Product diameter
    Production capacity
    SJZ51/105
    22kw
    16-50mm
    80-120kg/h
    SJZ65/132
    37kw
    50-200mm
    120-240kg/h
    SJZ80/156
    75kw
    160-315mm
    300-350kg/h
    SJZ92/188
    110kw
    315-630mm
    400-500kg/h

    Machine list of PVC pipe machine

    NoMain machineAuxiliary machines for your choice
    1Automatic material feederInk-jet printer
    2Conical double screw extruderMixer
    3Die-headCrusher
    4Vacuum calibration & cooling tankPVC pipe belling machine
    5Hauling machine
    6Cutting machine
    7Pipe stacker
    8Electric control table

    About US:

    Our main products include 3D filament production line, Plastic pelletizing machine, waste plastic recycling and washing machine, plastic pipe/board/profile production line and other kinds of plastic machine. Besides, we are making great efforts to develop new products to meet different requirements. Our company has CE,and SGS certificate control the product quality.
