    Co Extrusion 930mm PVC ASA Tile Production Line High Load Resistance

    Ask Lasest Price
    Brand Name : FRIEND MACHINERY
    Model Number : SJSZ80+SJ50
    Certification : CE ISO
    Price : USD 91200-95400 per set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10 sets per month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Co Extrusion 930mm PVC ASA Tile Production Line High Load Resistance

    PVC+ASA Compound Decorated Tile Production Line For Glaze Roof Tile Manufacturing

    Features

    The equipment is composed of a single screw and a conical twin screw. It adopts a specially designed screw and mold design, and uses pvc mixed polymer materials as raw materials. The extrusion performance is more stable, the plasticization performance is good, and the molding capacity is high; the product is used in Villas, workshops, flat-to-slope projects and other purposes; with excellent corrosion resistance, excellent load resistance, super weather resistance, green environmental protection, easy installation and other advantages.


    Product Specifications:

    The main widths are 840mm, 880mm, 1050mm, 1130mm and 1250mm.


    Product Application:

    1. It is suitable for sloping roofs with cast-in-situ concrete slabs and purlin system as the structural base.

    2. Composite plastic tiles are mainly used in multi-storey or low-rise residential buildings with high decorative requirements, and can also be used in park buildings and corridors in public places. Compared with ordinary plastic tiles, it has better weather resistance, color retention and long service life.

    3. Suitable for sloped roofs with a slope of 1:3 (18.5°) to 1:0.58 (60°).


    Machine List

    No.Equipment nameQtyRemarks
    1Screw feeder1 setFor SJSZ80/156 extruder
    2SJSZ80/156 conical twin screw extruder1 setFor PVC extrusion
    3SJ50×30 single screw extruder1 setFor ABS extrusion
    4Vacuum suction machine1 setFor SJ50×30 extruder
    5Drying hopper1 setFor SJ50×30 extruder
    6Mold1 setWidth 1300mm
    7Distributor1 set
    8Corrugated sheet shaping machine1 setProduct width 1130mm
    9Haul-off machine1 set
    10Cutting machine1 set
    11Stacker1 set

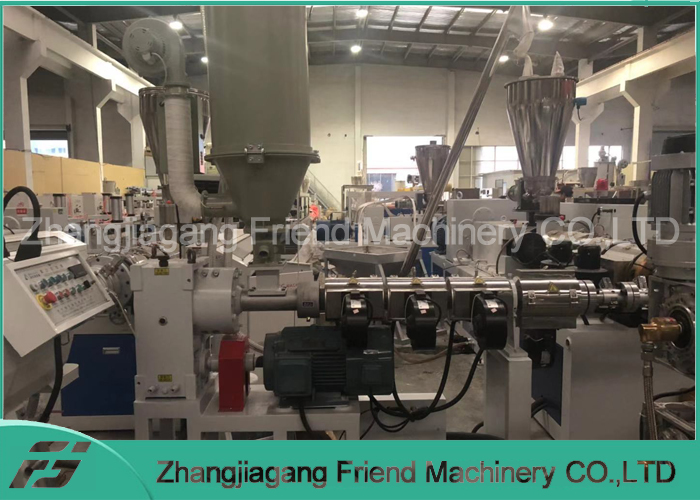

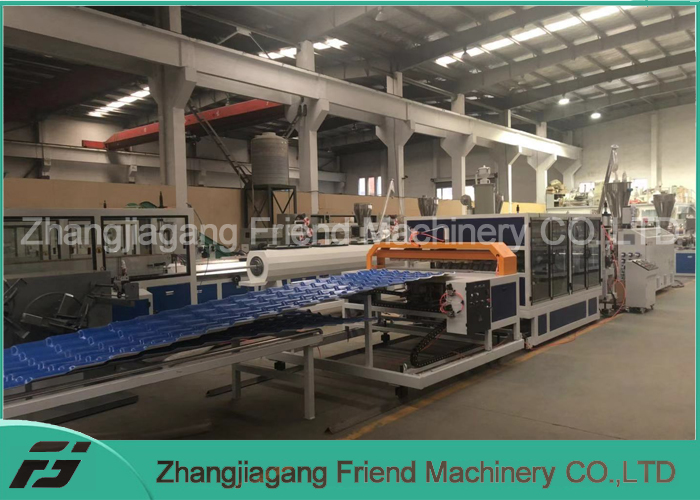

    Photos
