High Quality 20-63mm Double PVC Pipe Production Line for Sale
The 20-50mm PVC pipe production line(two cavity) designed us mainly
includes: powder feeder, conical twin screw extruder, mold (two
cavity), vacuum calibration tank, hauling machine, cutting machine
and stacker. The PVC pipe produced by this production line is
generally used for water supply, drainage pipe and wire threading
pipe, etc.
What Application of PVC Pipe?
1. Fields of crude oil transportation
2. Protection sleeves of wires and cables
3. Overhead or underground wire and cable
4. Hot and lukewarm water supply and drainage system
5. Agricultural and construction water supply and drainage
6. Directly buried pipes of high and extra high voltage electricity
7. Pipe lines of chemical industry which require high temperature and
corrosion resistance
Application of PVC,UPVC Wall Pipe extrusion production line / UPVC
pipe making machine:
Applied for manufacture of caliber PVC,UPVC water supply and drain
pipes,electric conduit pipe, etc
Working flow of PVC,UPVC Wall Pipe extrusion production line / UPVC
pipe making machine
Plastic extruder → mould → forming machine →pull off machine →
cutter / winder
| No. | Machine name | Brief introduction |
| 1 | Extruder | Can use one or several extruders to produce multi-layer pipes or to
increase capacity to produce pipe with very big size. Color line
extruder is to produce color line on pipe surface. |
| 2 | Die head | Can choose single layer die head or multi-layer die head to produce
pipe with single layer or multi-layer. |
| 3 | Vacuum tank | Structure has single chamber and double chamber. Different length
for different extruder capacity and pipe sizes. |
| 4 | Cooling tank | Can have several coolings tanks for better cooling effect. |
| 5 | Haul off unit | Based on pipe sizes, have two, four, six, eight, ten, twelve or
even more claws. Traction speed is designed based on extruder
capacity and pipe sizes. Customer can choose servo motor. |

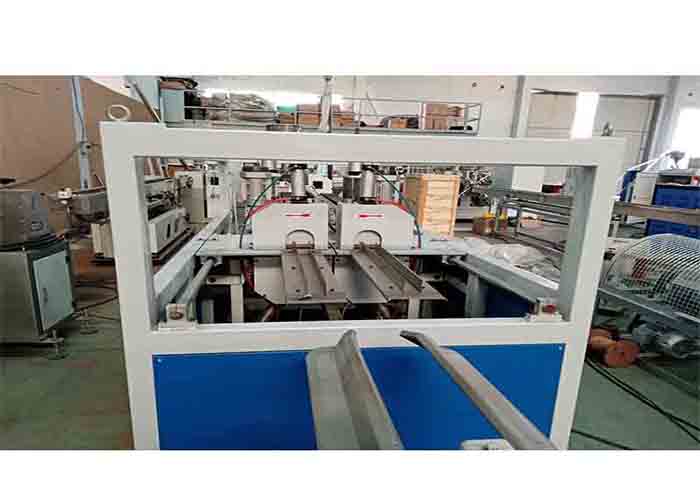

| 6 | Cutting unit | Have saw cutting, planetary saw cutting and knife cutting for
choice. |
| 7 | Stacker | Length of stacker can be customized. |
Note: machine can be customized base on customer requirements. Our company chooses the most suitable machine configuration based
on customer requirement. |
| Model | Capacity | PVC Pipe Diameter | Extruder | Motor Power |
| FLD-63 | 250kg/h | 20-63mm | SJSZ 65/132 | 37kw
|
